Metal Chain Curtain (Metal Coil Drapery)

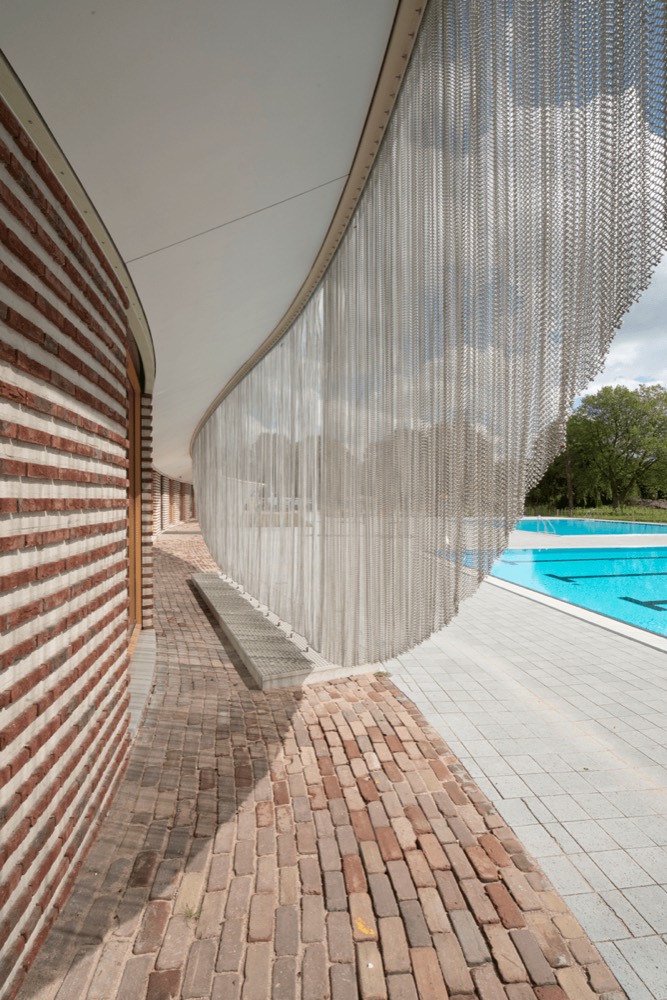

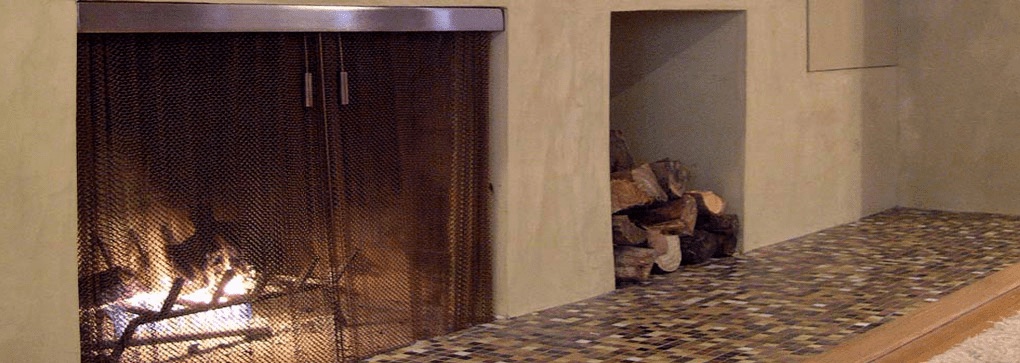

Our metal chain curtain has the appearance of a fine chain fabric with small openings. This flexible decorative metal curtain is used in interior and exterior architectural design and is also known as metal wire mesh curtain, metal coil drapery or chain mesh curtain.

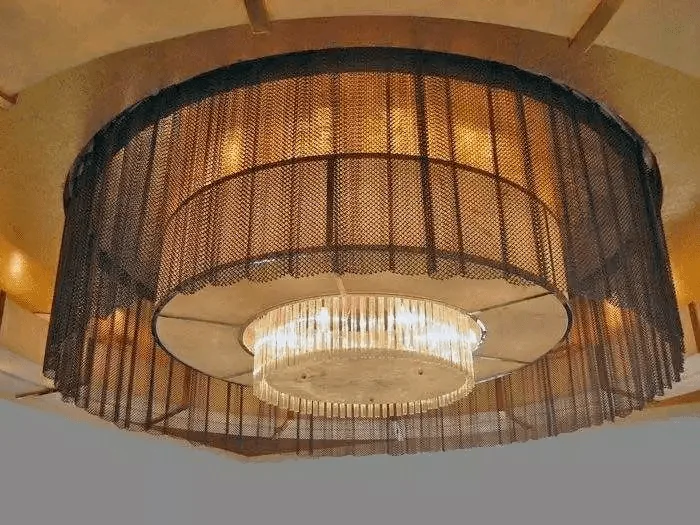

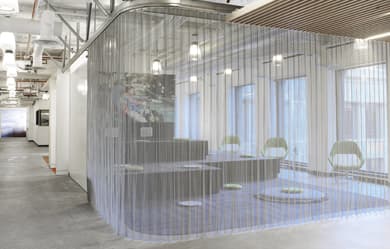

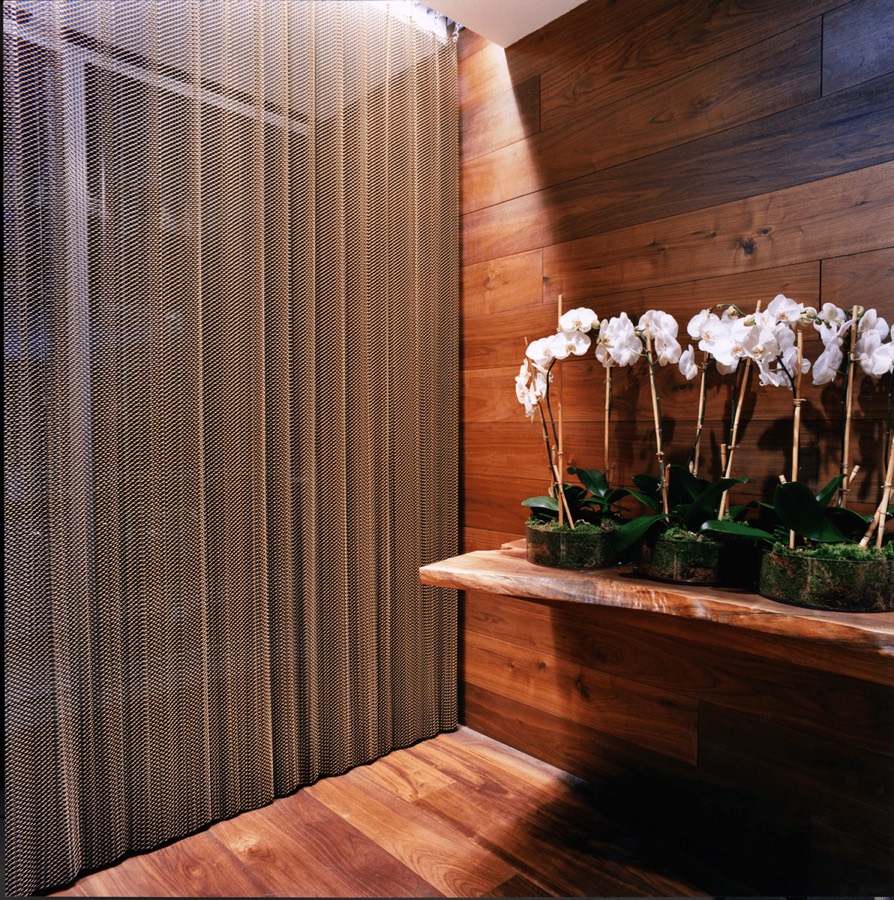

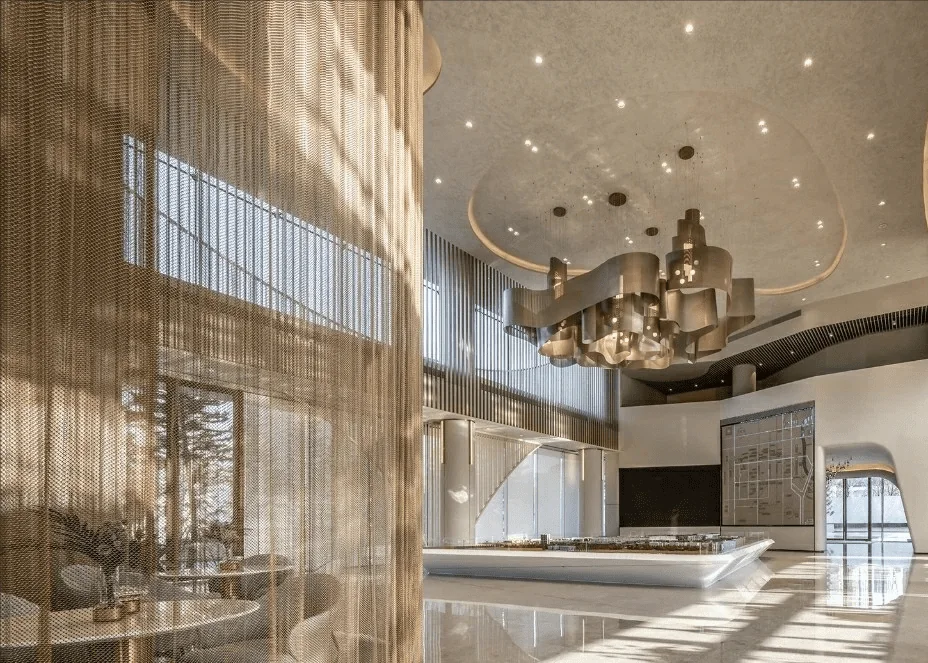

We customize the continuous coil sheet in different specifications, styles and shapes. It can hang flat, form waves, gather to one side or move on a compatible track or rod system, allowing the same mesh to work as a divider, screen or sculptural surface.

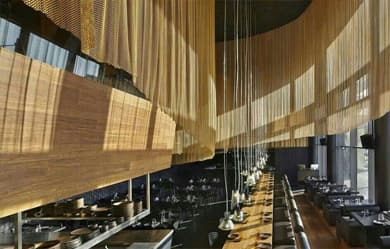

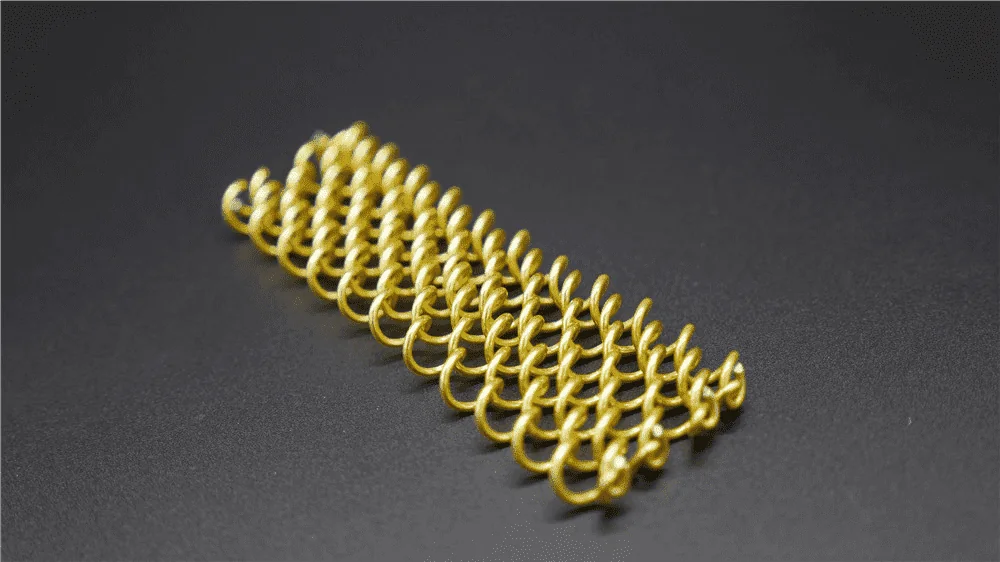

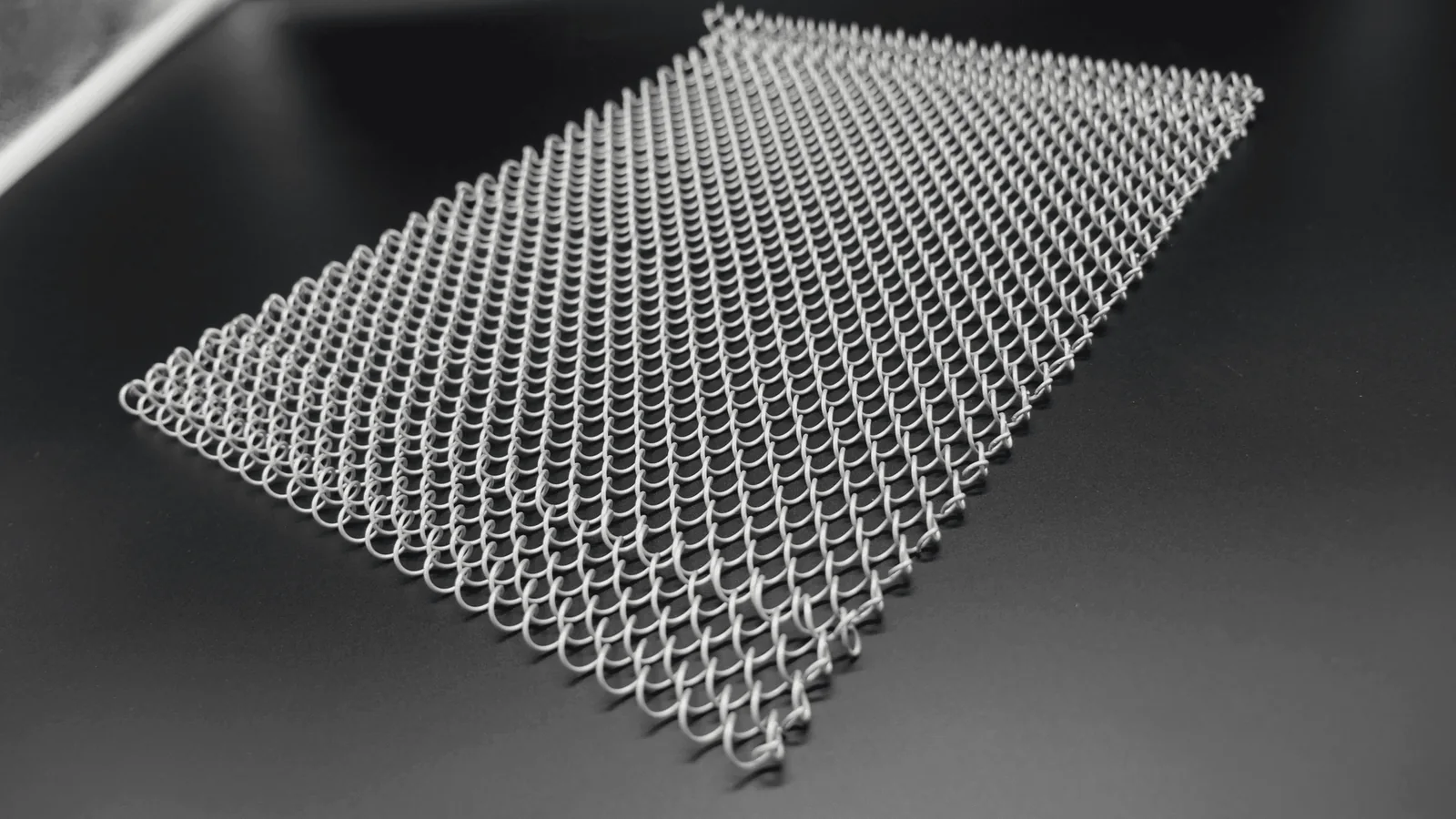

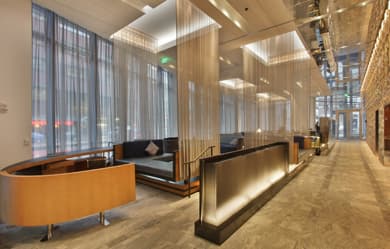

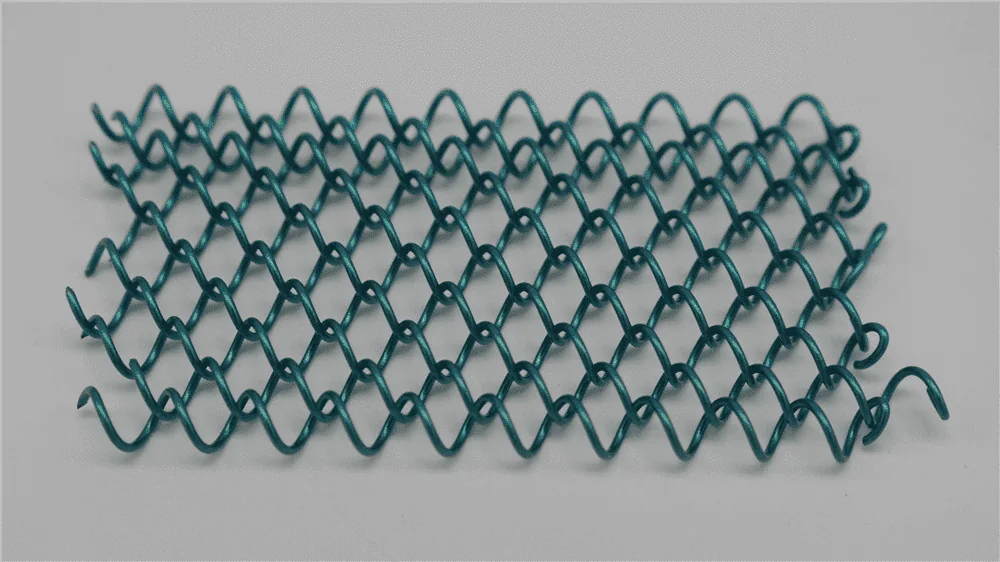

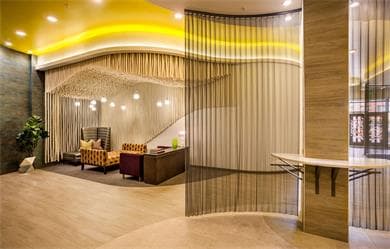

The close-up sample above and the installed project below show how the same coil construction looks at product and project scale. We adjust material, wire diameter, aperture and hanging fullness to achieve the required color, sheen, transparency and visual density.

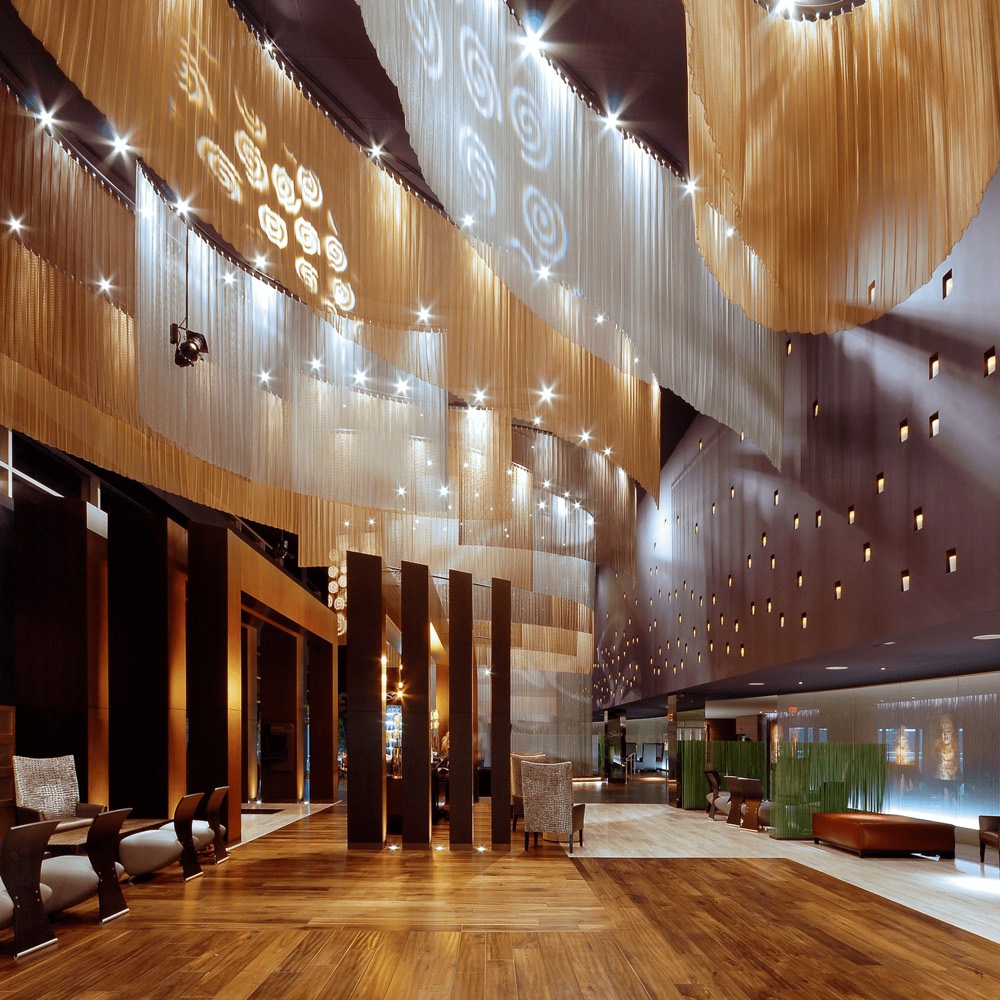

Metal coil drapery combines a soft, free-flowing visual effect with a metal surface. The winding wire adds fullness, the woven coil adds fluency and the corrugated profile creates depth. When gathered, the folds produce a different visual density from the same panel hung flat.

Bare metal mesh is non-absorbent compared with textile fabric, but a finished curtain may include coatings, fittings and adjacent materials. The product name alone does not establish fire, weather, corrosion, heat, impact, acoustic or security performance. For performance-critical projects, we match the material, coating and support design to the service conditions and confirm any required testing before quotation.

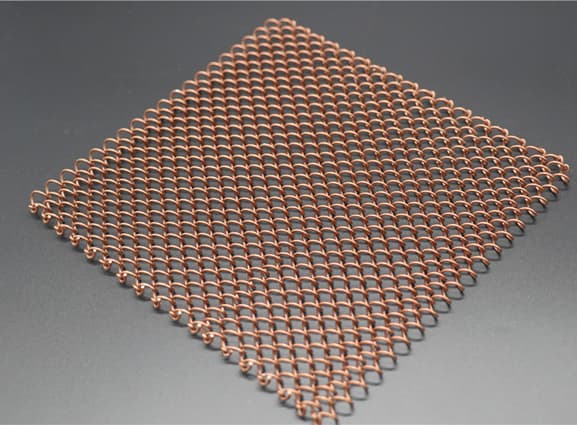

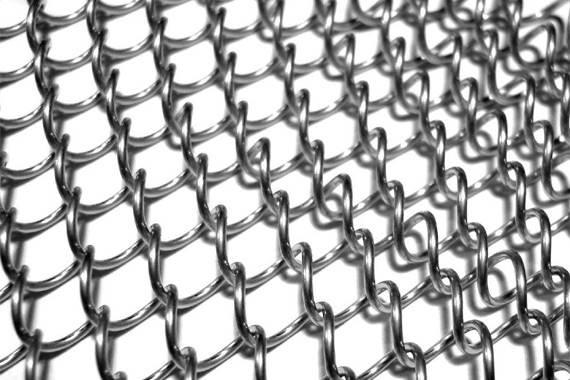

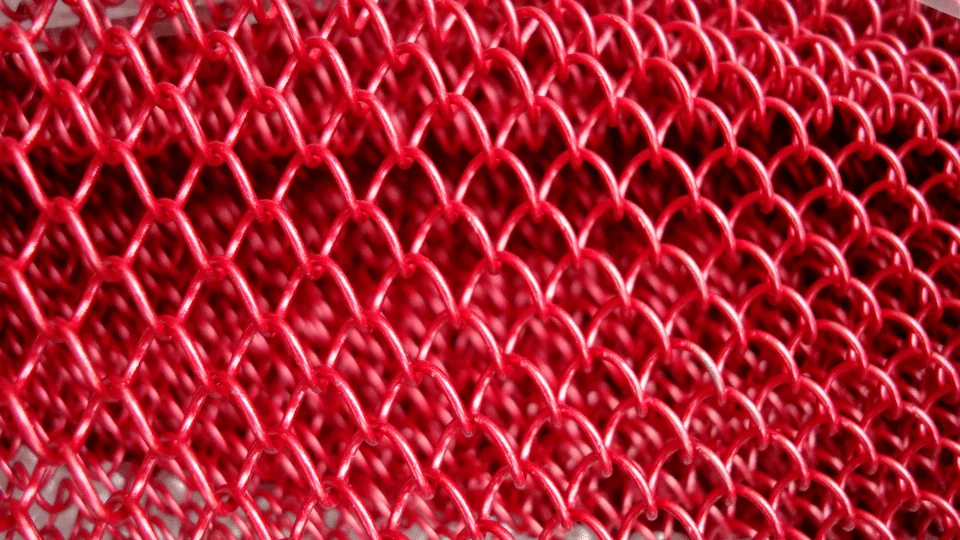

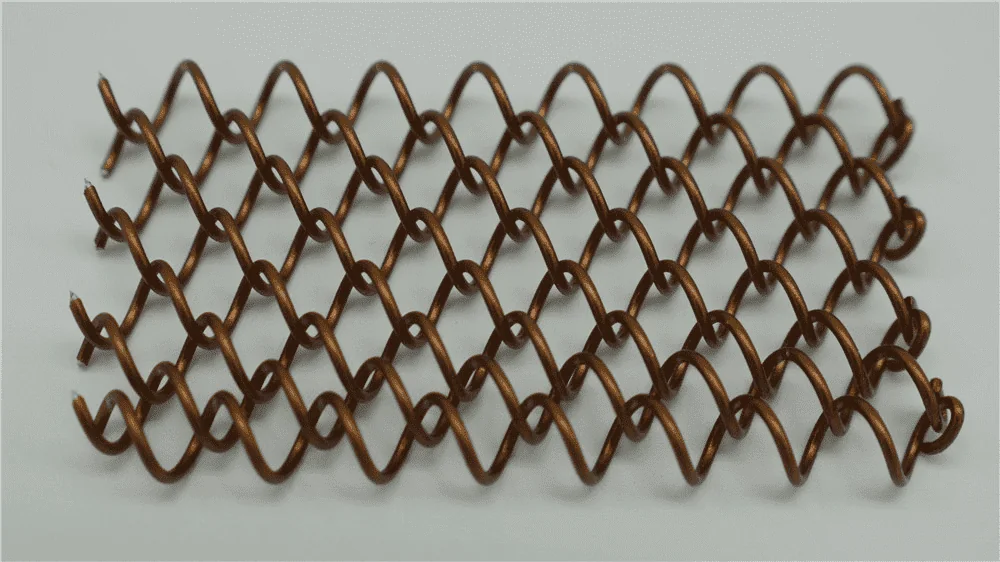

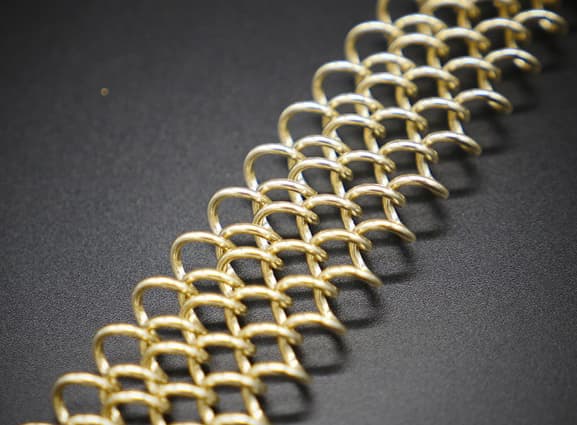

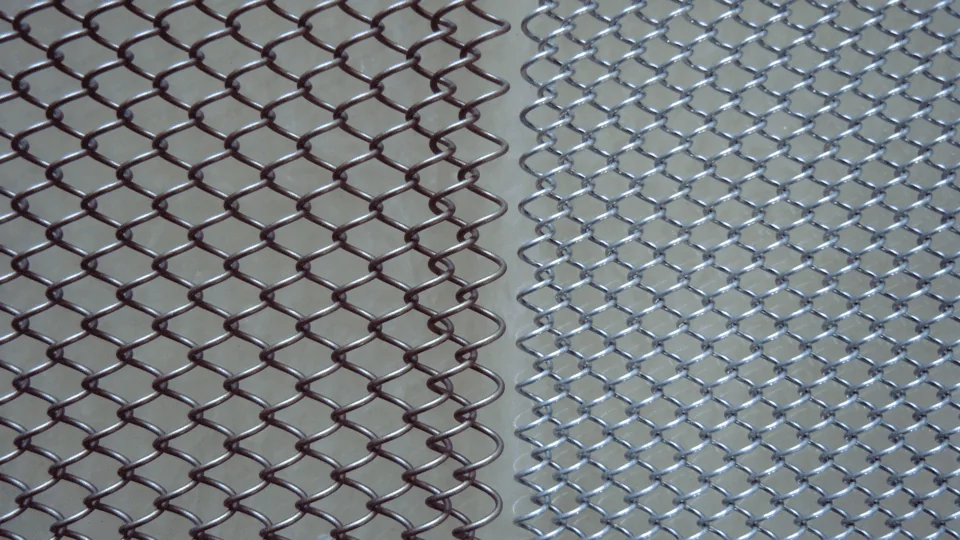

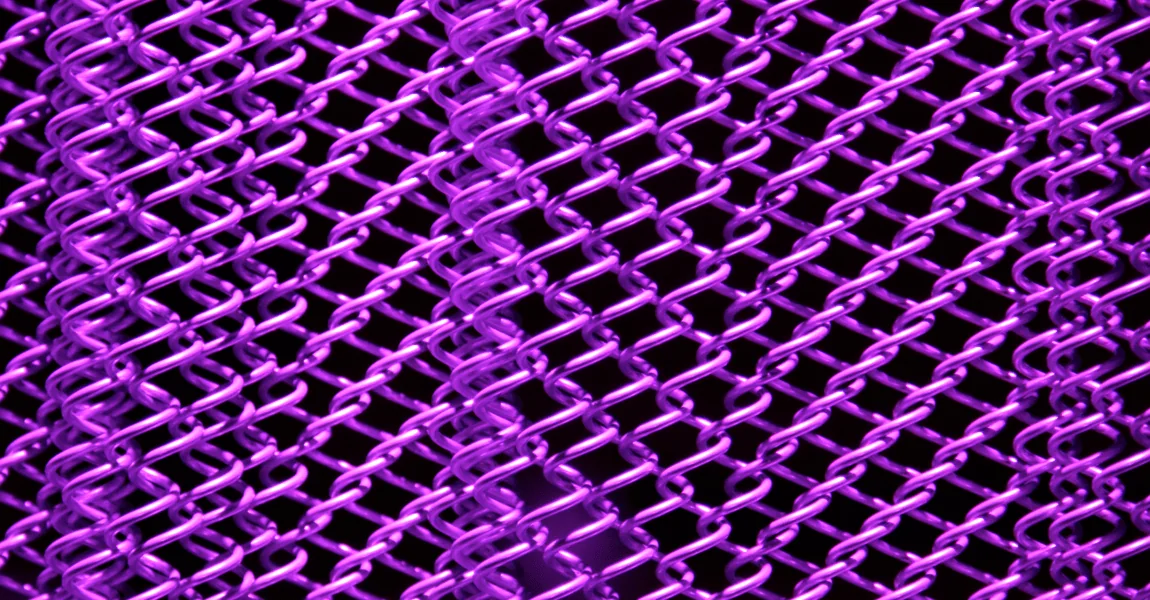

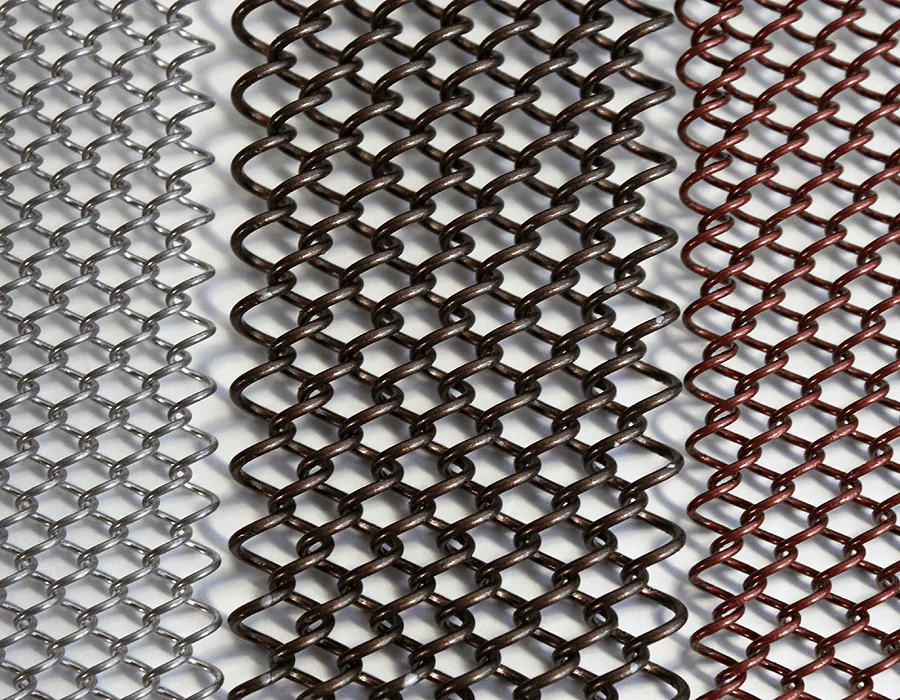

We offer metal coil drapery in different wire sizes, aperture proportions and roll forms. The product images below show fine and large openings, straight and rolled samples, multiple viewing angles and a range of surface appearances. We confirm the final construction from the required dimensions, application and visual effect rather than from an image alone.

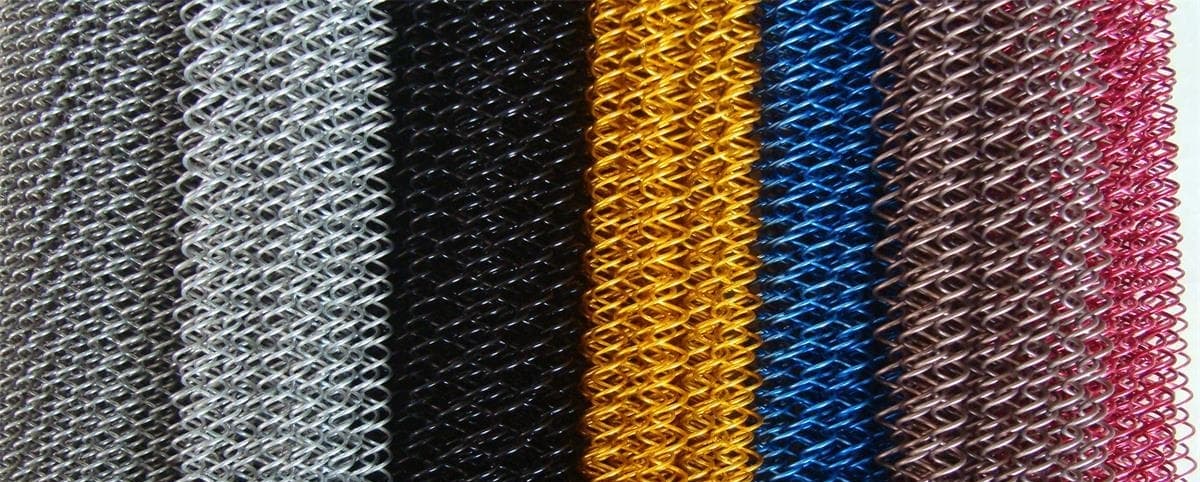

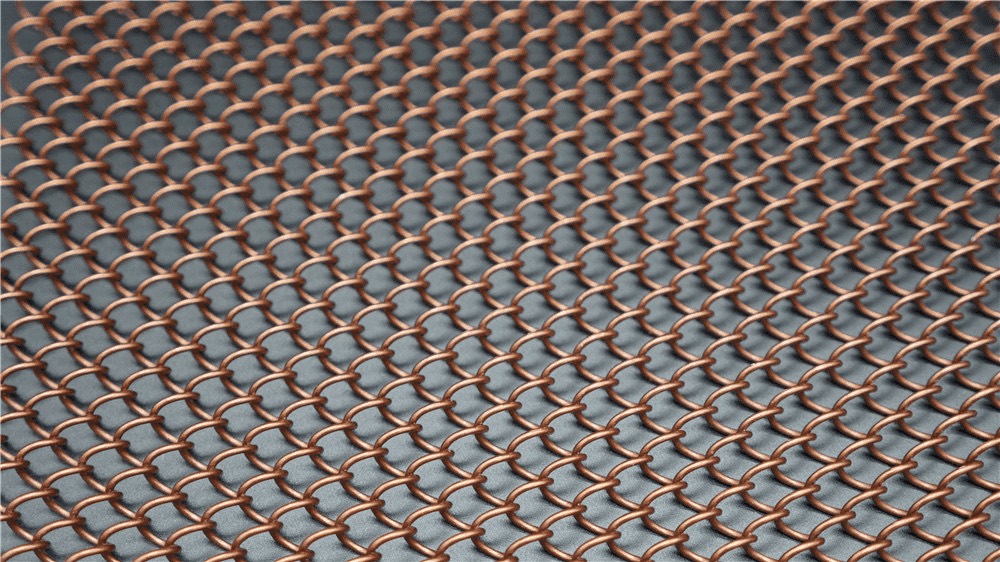

We can supply golden, space silver, copper, brass-yellow, ultra-black, Chinese red, purple, bronze, pearl gray, white and other custom colors to change the decorative character of the same coil structure.

Anodic oxidation forms a protective oxide layer on suitable metal, improving surface durability and corrosion resistance. Aluminum is commonly specified with an anodized or painted finish.

Acid washing removes surface oxides and inclusions from compatible metals. Stainless steel may use acid washing as a preparation or finish route, while any corrosion or color-retention expectation must still be matched to the grade and environment.

Baking paint is sprayed onto the surface and heat-cured to create a colored finish. Because the substrate, texture and lighting affect the result, send us a Pantone Formula Guide Coated or Metallics code and approve a physical finish sample before color-critical production.

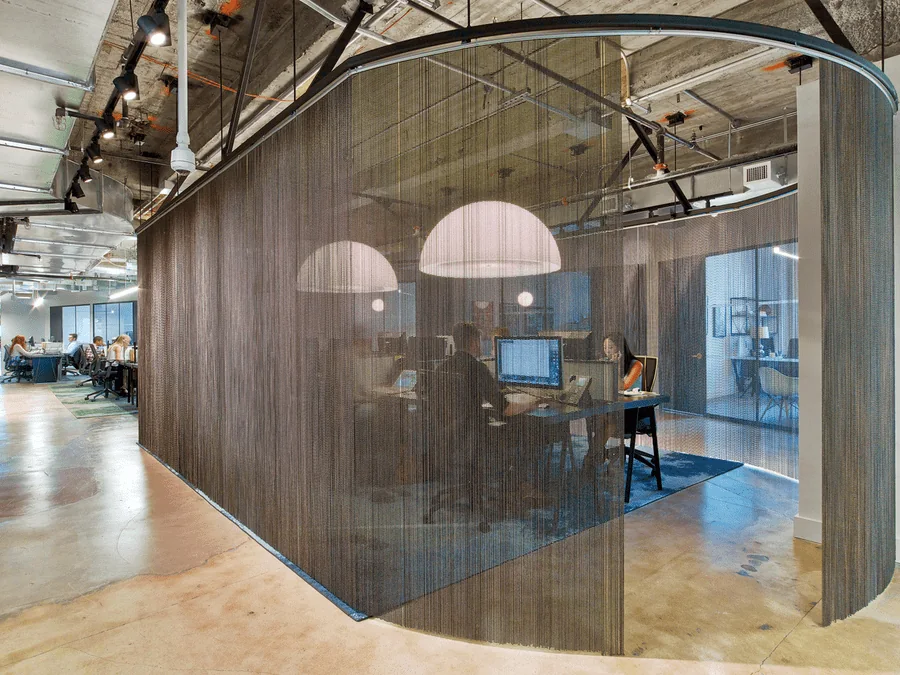

We offer wall- and ceiling-mounted systems using an aluminum-alloy track or stainless steel curtain rod. Compatible sliders, tabs or rings allow the curtain to open, close and gather along the top support.

Our aluminum-alloy track is lightweight and can be supplied straight or formed for a curved layout within the system's allowable radius. White, brown and black coatings are available; we match the alloy and finish to the intended exposure.

For heavier curtains, we can use a stainless steel rod with rings or tabs. Curved rods are mechanically formed to the approved radius, while the rod diameter, bracket span, end stops and fixing points are checked against the finished curtain load.

Send us the opening width and height, track path, mounting surface, movement direction, material, finish, quantity and drawings. Before production, we confirm joints, curves, support centers, site splicing and maintenance access for the actual installation.

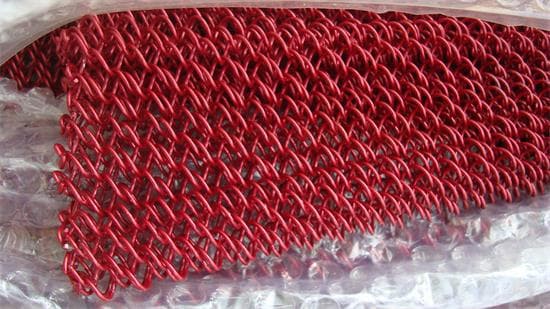

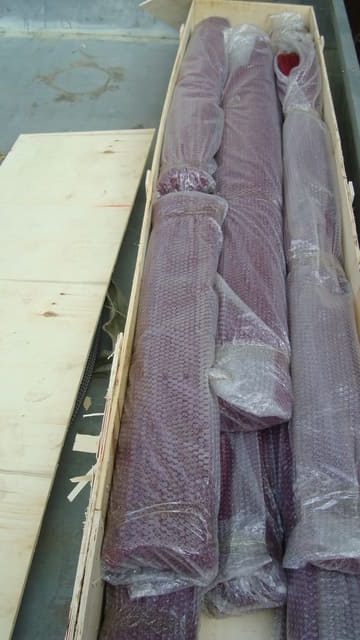

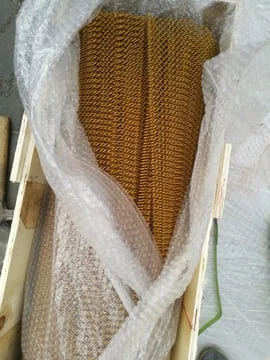

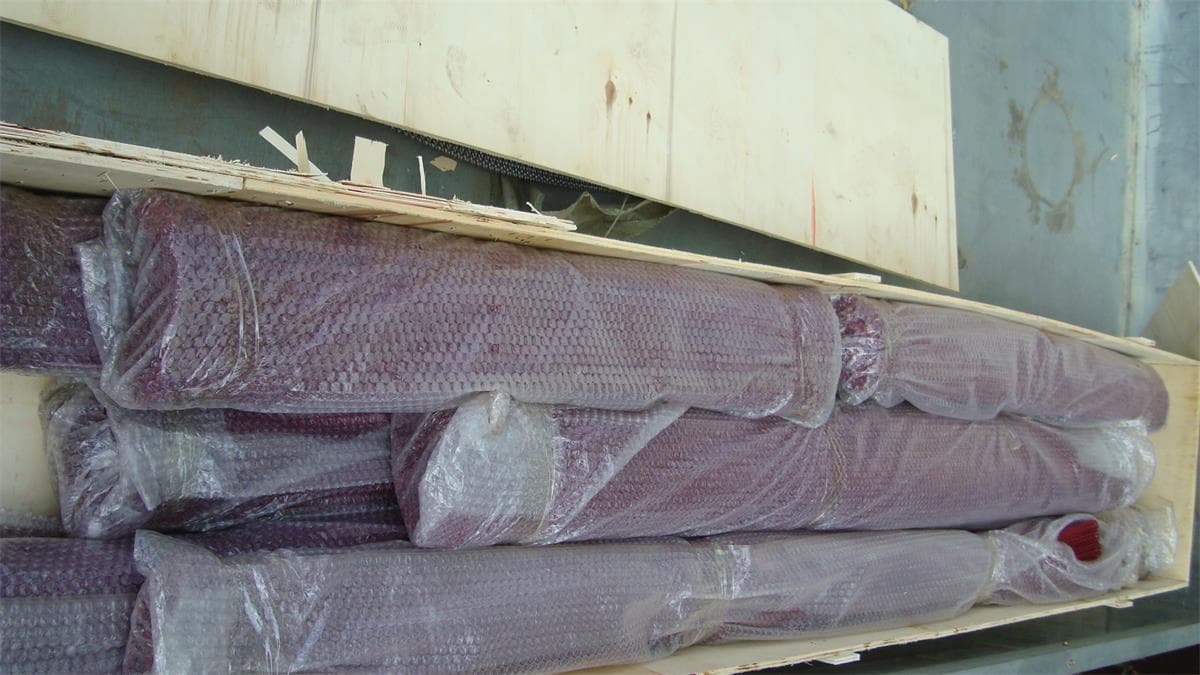

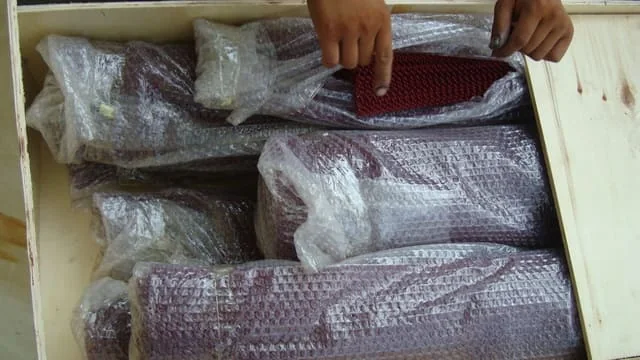

For export shipment, we normally roll the metal mesh curtain to protect the coil structure. Depending on the order, we wrap each roll in waterproof paper, plastic film or bubble film before placing it in a wooden box.

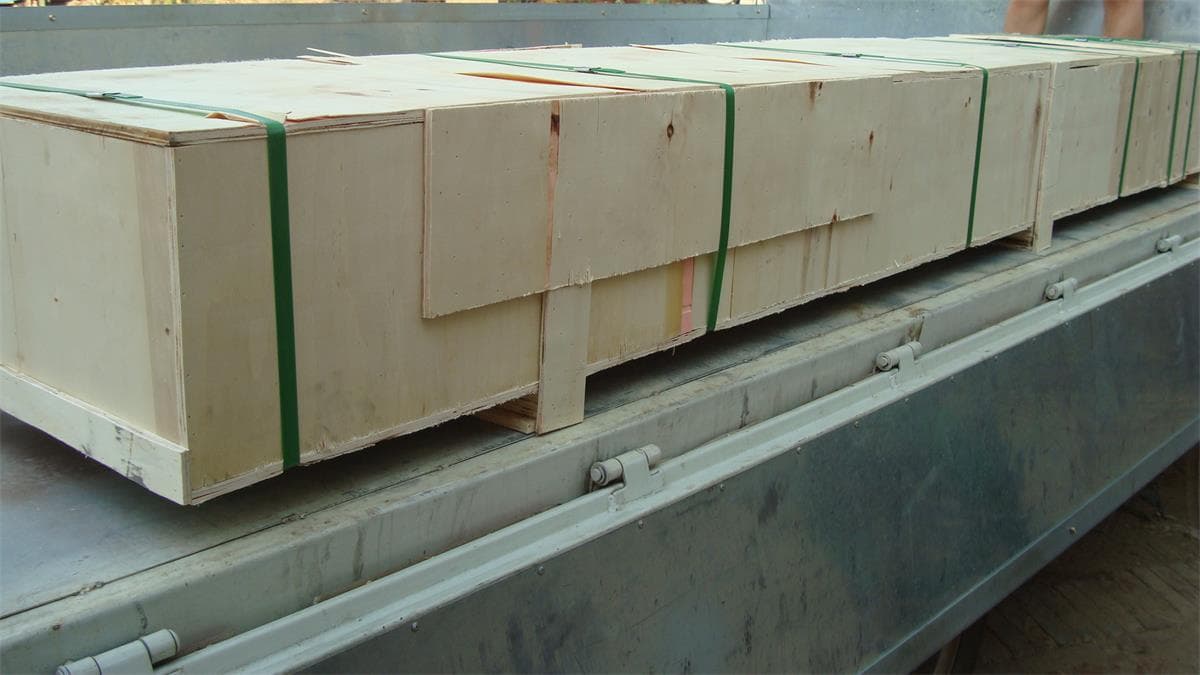

We make wooden boxes to suit the curtain length and panel arrangement. For long curtains, the box length can be up to 12 m when the container and loading method allow it; the actual limit depends on the container, route, handling, panel size and packing design.

Our available packing formats include protected long rolls, colored rolls, open wooden crates and closed strapped boxes. We match the final method to the curtain length, quantity, accessories, transport route and customer marking requirements.

Before shipment, we confirm the roll direction, panel marks, fittings, moisture protection, crate size, gross weight and loading method with your order.
