Decorative Expanded Metal Panels

Cut-and-stretched in one step with no welds or weak points — economical mesh panels for facades, railings, partitions and ventilation.

Request a QuoteView Product Details
Decorative Expanded Metal Panels

Overview

What is Decorative Expanded Metal?

Expanded metal is made by cutting and stretching a metal sheet with dies to form holes of different shapes in one step. Formed from a single piece of metal, it has no welds or weak points, giving a sounder structure than other mesh types — and less material waste, so it is highly economical.

Expanded metal serves protection (fences, railings, guards, grilles, covers), partition (homes, offices, indoor and outdoor structures), decoration (stair and walkway railings, facades), screening and filtering (oil industry, sand and gravel plants, vehicle gas vents) and ventilation or heat dissipation (equipment room flooring).

Material
Stainless steel, aluminum, carbon steel
Thickness
0.1 mm – 9 mm
Aperture size
0.5×1, 1×2, 1.25×2.5, 1.5×2.5, 1.6×3.2, 2×3, 3×4, 3×5, 3×6, 4×8, 5×10, 6×12, 8×16, 10×20, 12×25 or 15×30 mm
Surface treatment
Baking paint, anodic oxidation, plastic spraying, fluorocarbon spraying

Related application guides

Facade & Curtain WallSunshade & Screening

Quote basis

Product type or reference imageWidth, height and quantityMaterial and surface finishApplication environment

Specification

Main specification reference

Use these values to define your initial specification. We confirm the final mesh opening, finish, drop length and installation method against your project drawings before production.

Material
Stainless steel, aluminum, carbon steel
Thickness
0.1 mm – 9 mm
Aperture size
0.5×1, 1×2, 1.25×2.5, 1.5×2.5, 1.6×3.2, 2×3, 3×4, 3×5, 3×6, 4×8, 5×10, 6×12, 8×16, 10×20, 12×25 or 15×30 mm
Surface treatment
Baking paint, anodic oxidation, plastic spraying, fluorocarbon spraying
Color
Blue, green, yellow, pink, red, etc.

Applications

Uses of Decorative Expanded Metal

The one-piece expanded structure combines strength, open area and efficient material use across protective, decorative and ventilation projects.

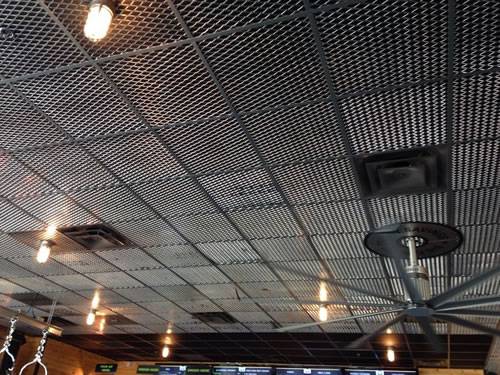

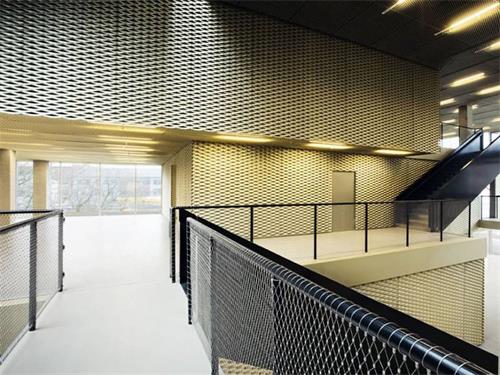

  • Building facades
  • Fences, railings, guards and grilles
  • Indoor partitions
  • Screens and filters
  • Ventilation and heat-dissipation flooring
Facade & Curtain WallSunshade & Screening

Technical reference

Specification Detail

This reference shows the construction and available configuration of Decorative Expanded Metal. Final dimensions, material and finish are confirmed for each project.

Decorative Expanded Metal Panels - Main Specifications of Decorative Expanded Metal Panels 1
Decorative Expanded Metal Panels - Main Specifications of Decorative Expanded Metal Panels 2
Decorative Expanded Metal Panels - Main Specifications of Decorative Expanded Metal Panels 3
